…is designed an especially equipped with a customized proprietary Hybrid IC and super bright white LED and longer life-span. Easy and fast installation.
Suitable for Factories, Schools, Sports Stadiums, Offices, Public Halls, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77 |
| Battery | : | 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | 1 x T5 White LED Tube |
| Rated Period | : | > 2 hrs, 4 hrs & others |
| Mode | : | Non-maintained |
| Operation Temperature | : | ta 40 °C |
| Power Comsumption | : | <2.2W |
| Charge Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 75 Lumen |
| Electromagnetic Field | : | 17m gause @ 0.1m |

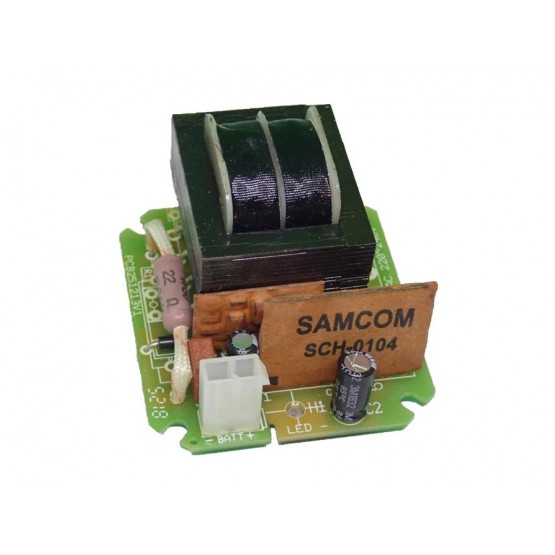

| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Moulded Fire Retardant ABS base PC diffuser |

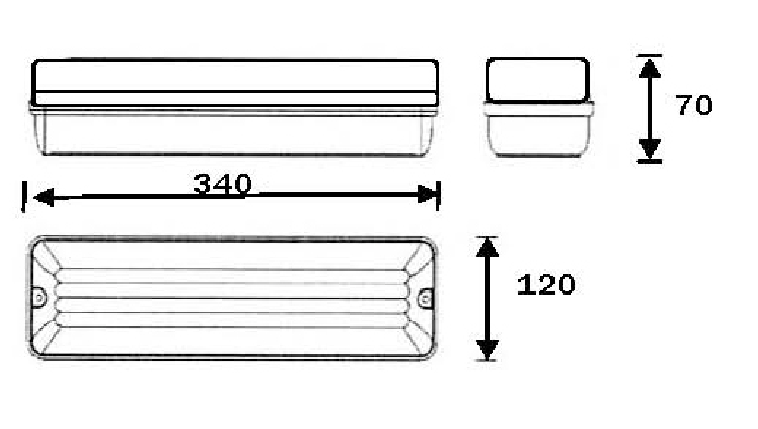

| Dimension | : | 340mm(L) x 120mm(W) x 70mm(H) |
| Weight | : | 1.40kg (Net) / 1.60kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 360mm(L) x 130mm(W) x 85mm(H) |
| Compliance | : | SS563-1:2010, SS563-2-2010/A1:2013, SSIEC60598-2-22:2016 SSIEC60598:PART 1:2016 |
| Warranty | : | 1 Year |
