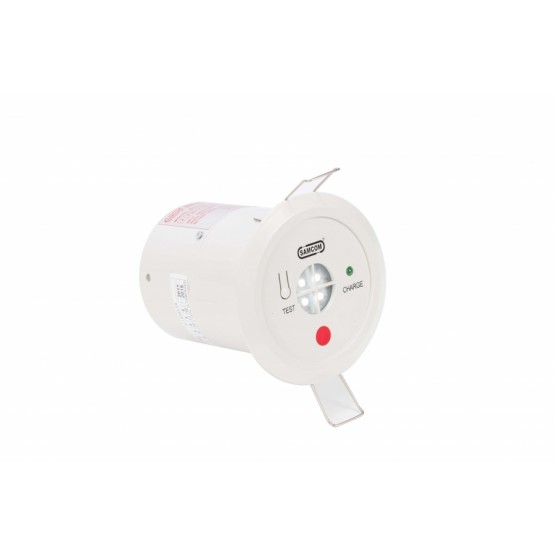

EHL 101-LED

EHL 101-LED

  • $45.00

... is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation. Small and aesthetically in design. Easy installation. Snap in and flush mount firmly onto ceiling/panel. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..

Qty

Input Voltage : 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

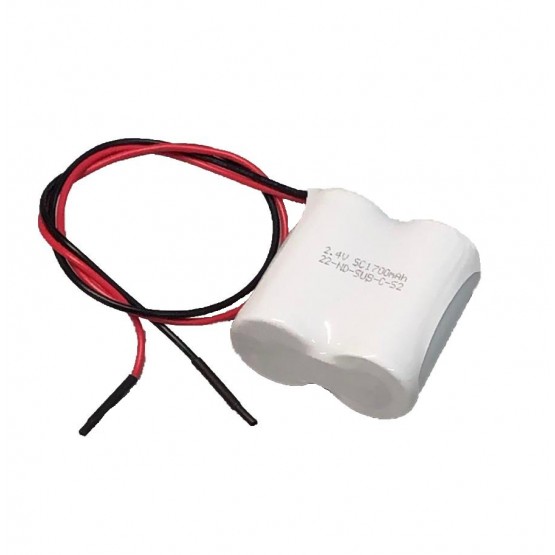

Battery : High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others
Lamp Used : 1 W SMT NICHIA White LED
Rated Period : > 4 hrs or others
Mode : Non-maintained
Operation Temperature : ta 25 °C
Power Consumption : 1.3W
Charge Monitor : Super bright Green LED 5mm Ø
Recharge Period : 16 ~ 24 hrs
Emergency Luminance : 28 Im
Electromagnetic Field : 6.9m gause @ 0.1m
Charger : Hybrid controlled charger
Protection : Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit
Construction : Moulded Fire Retardant PC + UV housing.

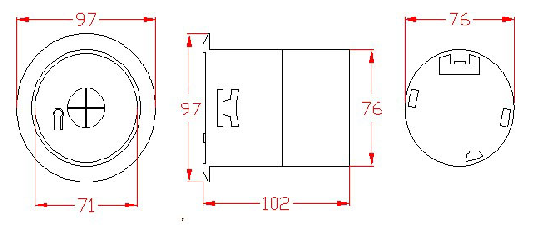

Dimension : 97mm(L) x 97mm(W) x 102mm(H)
Packing : One unit per carton
Carton/Dimension : Double wall corrugated / 110mm(L) x 110mm(W) x 120mm(H)
Compliance : SS563-1-2010, SS563-2-2010/A1:2013, SSIEC60598-2-22:2016 SSIEC60598:PART 1:2016
Warranty : 1 Year

EHL-101-LED-1
