EHL 101M-LED

EHL 101M-LED

  • $45.00

…is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation. Small and aesthetically in design. Easy installation. Snap-in and flush mount firmly onto ceiling/panel. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..

Qty

Input Voltage : 230Vac 50/60Hz or 115Vac 50/60Hz or others
Battery : High temp rated Nickel Cadmium cells 2.4V 1.6Ah or others
Lamp Used : 4 x 0.25W SMT NICHIA White LED
Rated Period : > 4 hrs or others
Mode : Non-maintained
Operation Temperature : ta 40°C
Power Consumption : < 1.3W
Charge Monitor : Super bright Green LED 5mm Ø
Recharge Period : 16 ~ 24 hrs
Emergency Luminance : 27 Im
Electromagnetic Field : 6.9m gause @ 0.1m
Charger : Hybrid controlled charger
Protection : Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on a hybrid control circuit
Construction : Electrode galvanized sheet steel with epoxy powder coating

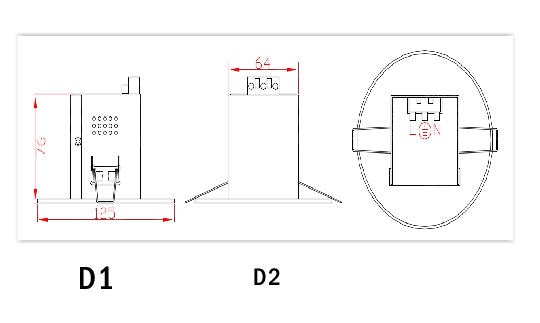

Dimension : 123mm(D1) x 64mm(D2) x 75mm(H)
Weight : 0.50kg (Net) 0.54kg (Gross)
Packing : One unit per carton
Carton/Dimension : Double wall corrugated / 135mm(L) x 135mm(W) x 120mm(H)
Compliance : SS563-1:2010, SS563-2-2010/A1:2013, SSIEC60598-2-22:2016 SSIEC60598:PART 1:2016
Warranty : 1 Year

EHL-101M-LED-1
