…is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation. Small and aesthetically in design. Easy installation. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | High temp rated Nickel Cadmium cells 2.4V 2.5Ah |
| Lamp Used | : | 1W SMT White LED or 3W Super Bright LED Module, Light Output 280 lm |
| Rated Period | : | > 3 hrs or others |
| Mode | : | Non-maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | 1.3W |
| Charge Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 27Im |
| Electromagnetic Field | : | 6.9m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge.Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Electrode galvanised sheet steel with epoxy powder coating |

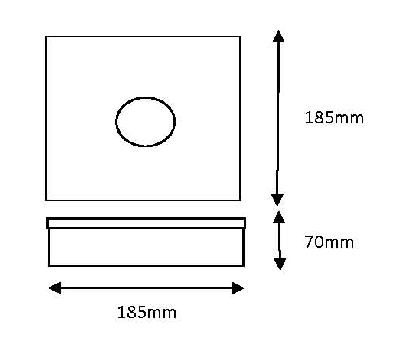

| Dimension | : | 185mm(L) x 185mm(W) x 70mm(H) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 190mm(L) x 190mm(W) x 80mm(H) |
| Compliance | : | SS563-1-2010, SS563-2-2010/A1:2013, SSIEC60598-2-22:2016 SSIEC60598: PART 1:2016 |
| Warranty | : | 1 Year |
