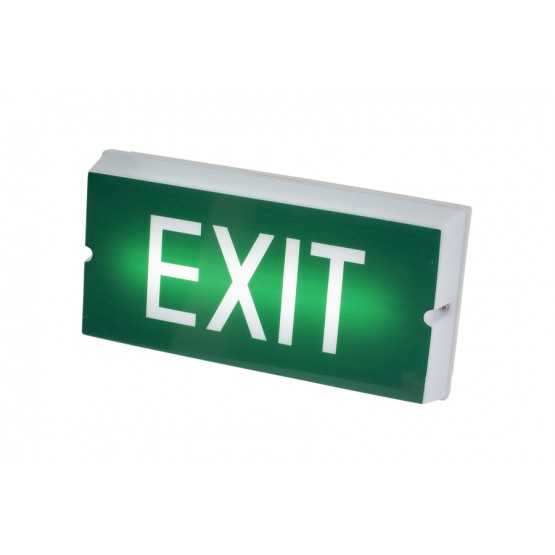

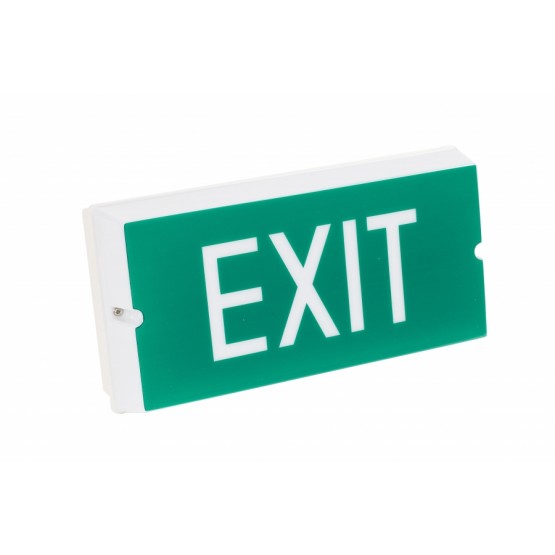

ELW 115-LED-T5

ELW 115-LED-T5

  • $65.00
On/Off

… is designed to be lightweight, low power consumption, low EMI and specially equipped with a customized proprietary Hybrid IC and super bright white LED and longer life-span. Easy and fast installation.
Suitable for general outdoor & indoor application.

Qty

Input Voltage : 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

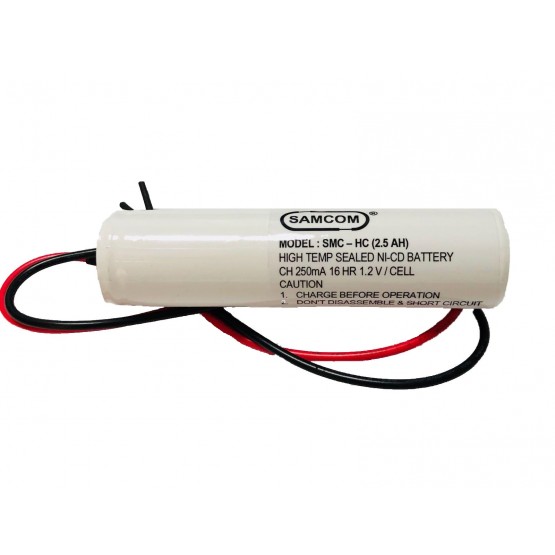

Battery : 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others

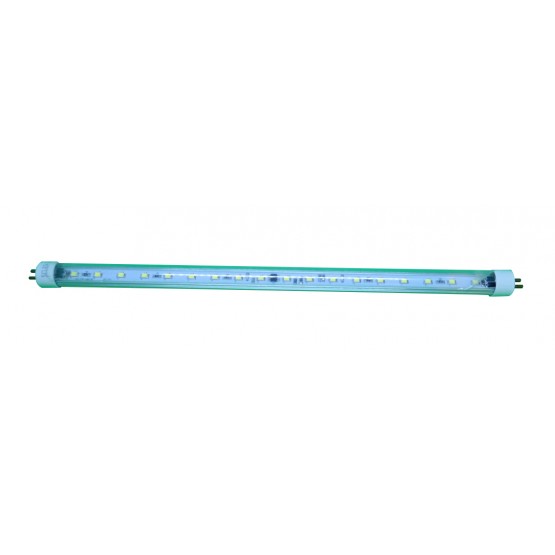

Lamp Used : 1 x 2W T5 White LED Tube or Super Bridge SMT White Led
Rated Period : 2 hrs, 3 hrs or others
Mode : Maintained
Operation Temperature : ta 40 °C
Power Consumption : < 4.6W
Charge Monitor : Super bright green LED 5mm Ø
Recharge Period : 16 ~ 24 hrs
Emergency Luminance : > 8 cd/m2
Electromagnetic Field : 17m gause @ 0.1m

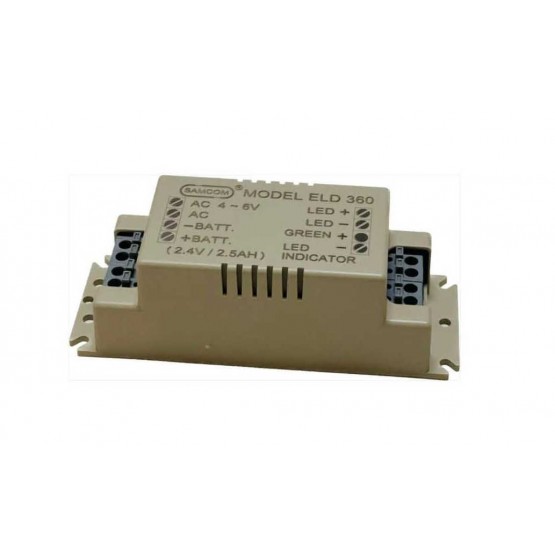

Charger : Hybrid controlled charger
Protection : Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit
Construction : Moulded Fire Retardant ABS housing with 20mm Ø K/O hole and Acrylic diffuser

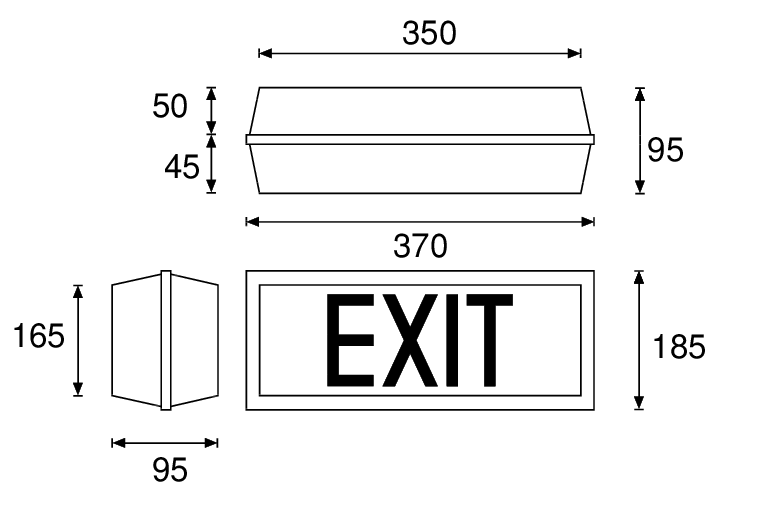

Dimension : 370mm(L) x 185mm(W) x 95mm(H)
Weight : 1.50kg (Net) / 1.60kg (Gross)
Packing : One unit per carton
Carton/Dimension : Double wall corrugated / 400mm(L) x 210mm(W) x 110mm(H)
Compliance : SS563-1:2010, SS563-2-2010//A1:2013, SSIEC60598-2-22:2016 SSIEC50598: PART 1:2016
Warranty : 1 Year

ELW-115-LED-T5-1
