Hybrid IC Controlled Self-Contained Emergency Exit Light
LED Luminaire (Recess Mounting)
… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/ maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77 |
| Battery | : | 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | 1.8W SMT NICHIA White LED or T5 White LED tube > 50,000 hrs |
| Rated Period | : | > 2 hrs, 3 hrs or others |
| Mode | : | Maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | 4.6W |
| Charge Monitor | : | Super bright Green LED 5mm |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | > 8 cd/m2 |
| Electromagnetic Field | : | 17m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser |

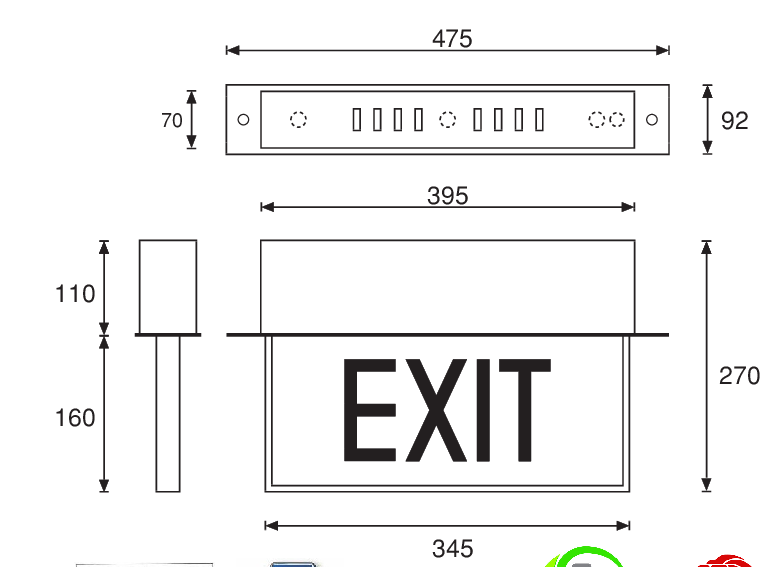

| Dimension | : | 475mm(L) x 92mm(W) x 270mm(H) |
| Weight | : | 2.70kg(Net) / 2.80kg(Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 495mm(L) x 105mm(W) x 310mm(H) |
| Compliance | : | SS563-1:2010, SS563-2:2010/A1:2013 SSIEC 60598:PART 1: 2016 |
| Warranty | : | 1 Year |
| Weight | 2.702.80 kg |
|---|
