Hybrid IC Controlled Self-Contained Emergency Lighting
LED Luminaire
… The designed is thin and lightwight, lowest power consumption, minimize EMI and specially equipped with a customised proprietary Hybrid IC, super-bright white LED and longer life-span. Easy and fast installation.
Enviroment for Factories, Schools, Sports Stadiums, Banks, Clubs, Hotels, Computer Rooms, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77 |
| Battery | : | 3.6V 0.9Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | SMT White LED strip > 30,000 hrs |
| Rated Period | : | > 2 hrs, 3 hrs or others |
| Mode | : | Maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | < 2W |
| Change Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | > 8 cd/m2 |
| Electromagnetic Field | : | 17m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser |

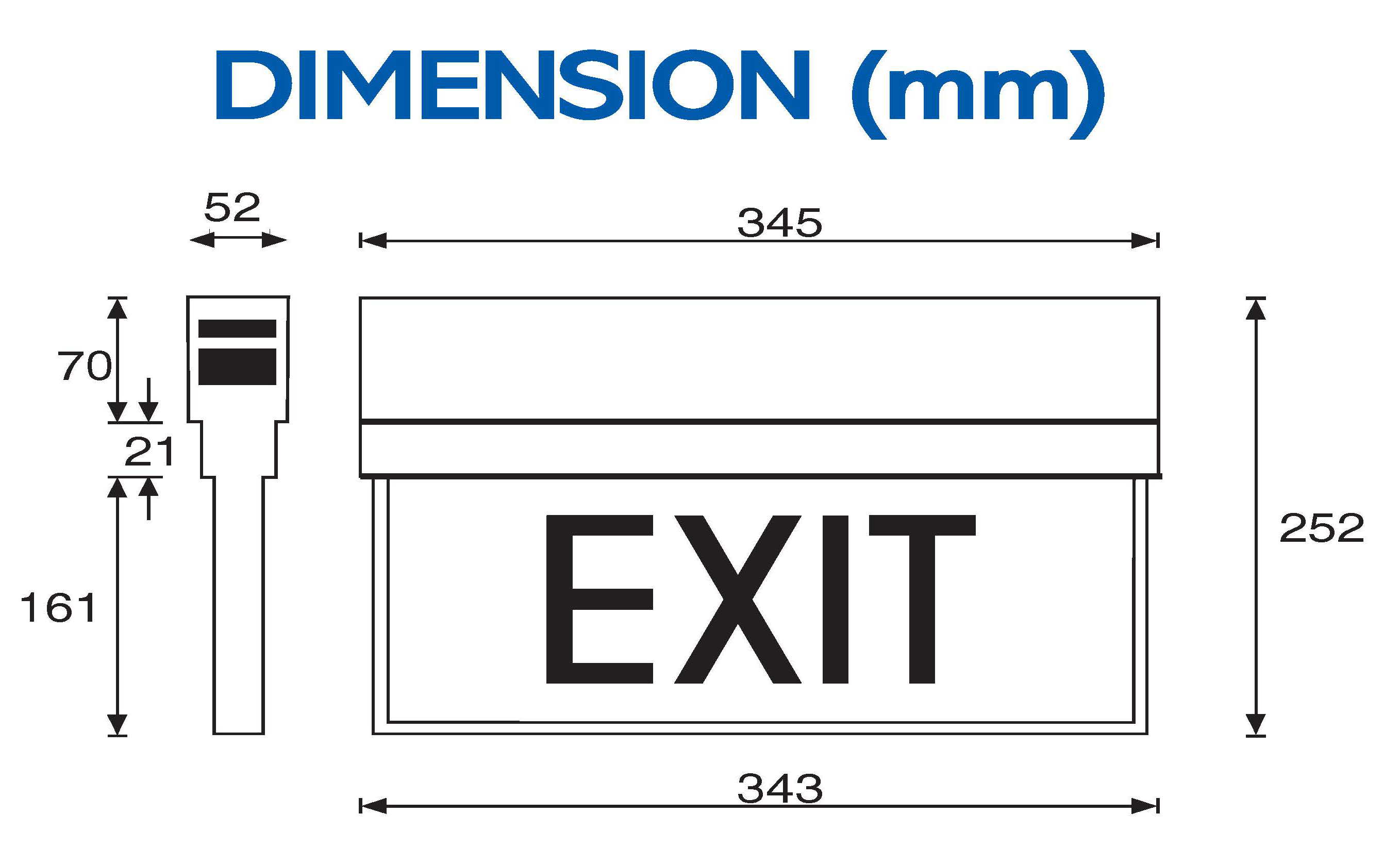

| Dimension | : | 345mm(L) x 52mm(W) x 252mm(H) |
| Weight | : | 1.30kg(Net) / 1.47kg(Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 370mm(L) x 60mm(W) x 265mm(H) |
| Compliance | : | CP19: 20000, SS263, PART 2: IEC 598-2-22, S364 |
| Warranty | : | 1 Year |
| Weight | 1.30 kg |
|---|
