EHL 110

EHL 110

  • $48.00

… is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in operation.
Small and aesthetically in design. Easy installation. Snap-in and flush mount firmly onto ceiling/panel. It stays inconspicuously and maintains the original interior decoration of the premises.
Suitable for Banks, Computer Rooms, Offices, Cinemas, Hotels, Shops, Supermarkets, etc..

Qty

Input Voltage : 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
Battery : 6V 4.5Ah Sealed Lead Acid or others
Lamp Used : 1 x 5W / 10W Halogen or others
Rated Period : > 1 hr, 2 hrs or others
Mode : Non-maintained
Operation Temperature : ta 40 °C
Power Consumption : < 5VA
Charge Monitor : Super bright Green LED 5mm Ø
Recharge Period : 16 ~ 24 hrs
Emergency Luminance : 33 Im
Electromagnetic Field : 6.9m gause @ 0.1m
Charger : Hybrid controlled charger
Protection : Low volt cut-off to prevent battery over discharge. Incoming AC fuse, Circuit Protection Fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit
Construction : Electrode galvanised sheet steel with epoxy powder coating.
Dimension : 343mm(L) x 77mm(W) x50mm(H)
Packing : One unit per carton
Carton/Dimension : Double wall corrugated / 410mm(L) x 90mm(W) x 90mm(H)
Compliance : SS263: Park 2: 1998/A2:2008, SS563-2:2010/A1:2013
Warranty : 1 Year

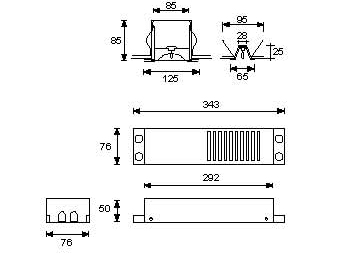

Diag-EHL110P
