…is designed and specially equipped with SAMCOM Model EMK Power Pack to achieve higher reliability and greater efficiency in operation.
Suitable for House Entrances, Balconies, Staircases, Corridors, Children’s Rooms, Gardens, Bathrooms, Shelters, Parking Lots, Factories, Offices, Hotels, Pedestrian Passages, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 6.0V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | 1 x 16W Day Light / Warm White LED or others |
| Rated Period | : | 1 hr, 2 hrs ± 10% or others |
| Mode | : | Maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | 21W |
| Charge Monitor | : | Super bright green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 320Im |
| Electromagnetic Field | : | 16m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit |
| Construction | : | Moulded ABS housing and diffuser |

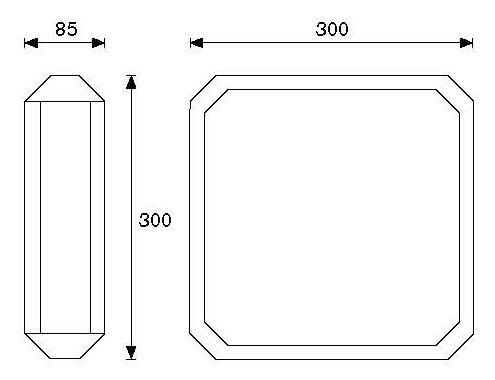

| Dimension | : | 300mm(L) x 300mm(W) x 85mm(H) |
| Weight | : | 2.5kg (Net) / 2.6kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 310mm(L) x 310mm(W) x 95mm(H) |
| Compliance | : | SS563-1:2010, SS563-2:2010/A1:2013.SSIEC60598-2:22:2016 SSIEC60598:PART1:2016 |
| Warranty | : | 1 Year |
