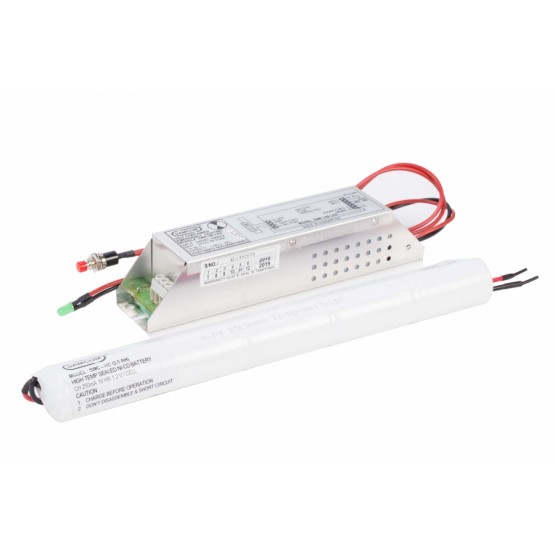

EMK 140-LED

…is specially designed to be very compact and small in size. With this small size advantage, it can be easily installed into various types of LED luminaries fittings.
It is equipped with a Hi-temperature Nickel Cadmium battery pack and a super bright LED charge indicator. The built-in customized proprietary Hybrid IC circuitry enhances reliability and efficiency in operation.

DOWNLOAD PDF

$50.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

6V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others

Lamp Used

8W~18W T8 LED Tube (110V ~ 230V)

Rated Period

> 1 hr, 2 hrs, 3 hrs or others

Mode

Maintained/Non-maintained

Operation Temperature

ta 40 °C

Power Consumption

3.3W

Charge Monitor

Super bright red LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

Design range from 20~50%

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

Construction

Aluminium case

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 330mm(L) x 90mm(W) x 50mm(H)

Compliance

IEC61347-2-7:2000

Warranty

1 Year

Testing Facility

Push Button
