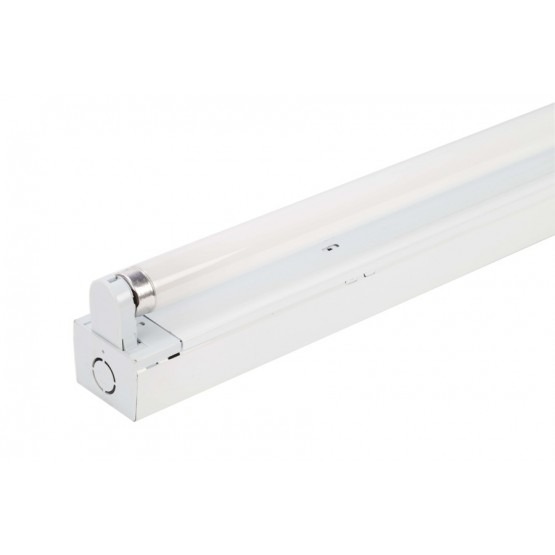

EML 140-LED-BATTEN

…is designed and specially equipped with SAMCOM Model EMK Power Pack to achieve higher reliability and greater efficiency in operation.

Suitable for House Entrances, Balconies, Staircases, Corridors, Children’s Rooms, Gardens, Bathrooms, Shelters, Parking Lots, Factories, Offices, Hotels, Pedestrian Passages, etc..

DOWNLOAD PDF

$65.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

6V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others

Lamp Used

1 x 16W Day Light / Warm White LED or others

Rated Period

1 hr, 2 hrs, 3 hrs ± 10% or others

Mode

Maintained

Operation Temperature

ta 40 °C

Power Consumption

6VA / 17VA / 26VA

Charge Monitor

Super bright green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

Design range from 20 ~ 100%

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

Construction

Electrode galvanised sheet steel

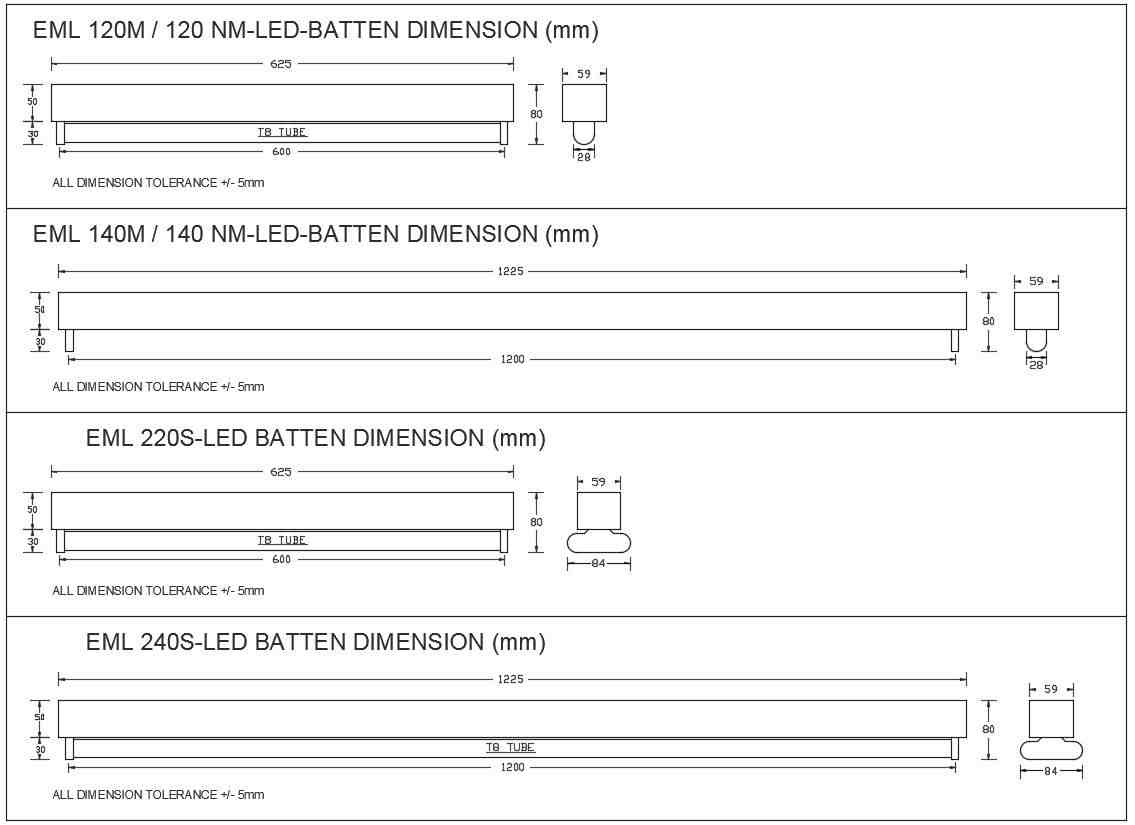

Dimension

1280mm(L) x 105mm(W) x 100mm(H) (EML 140M)

Weight

2.5kg (Net) / 2.6kg (Gross)

Packing

One unit per carton

Compliance

SS263:Part 2/A2: 2008, SS563-2:2010/A1:20133

Warranty

1 Year

EML 140-LED-BATTEN
