EPL 116-LED-SQ

…is designed and specially equipped with SAMCOM Model EMK Power Pack to achieve higher reliability and greater efficiency in operation.

Suitable for House Entrances, Balconies, Staircases, Corridors, Children’s Rooms, Gardens, Bathrooms, Shelters, Parking Lots, Factories, Offices, Hotels, Pedestrian Passages, etc..

DOWNLOAD PDF

$135.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

6.0V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others

Lamp Used

1 x 16W Day Light / Warm White LED or others

Rated Period

1 hr, 2 hrs ± 10% or others

Mode

Maintained

Operation Temperature

ta 40 °C

Power Consumption

21W

Charge Monitor

Super bright green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

320lm

Electromagnetic Field

16m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit

Construction

Moulded ABS housing and diffuser

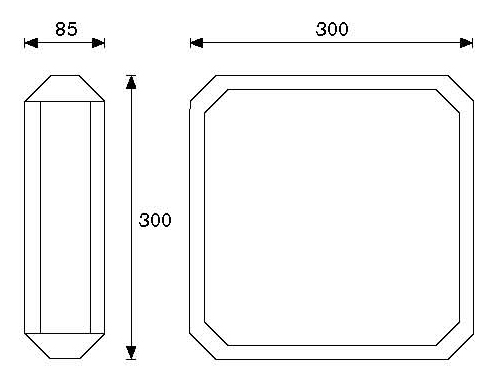

Dimension

300mm(L) x 300mm(W) x 85mm(H)

Weight

2.5kg (Net) / 2.6kg (Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 310mm(L) x 310mm(W) x 95mm(H)

Compliance

SS563-1:2010, SS563-2:2010/A1:2013, SSIEC60598-2:22:2016, SSIEC60598:PART1:2016

Warranty

1 Year

EPL 116-LED-SQ
