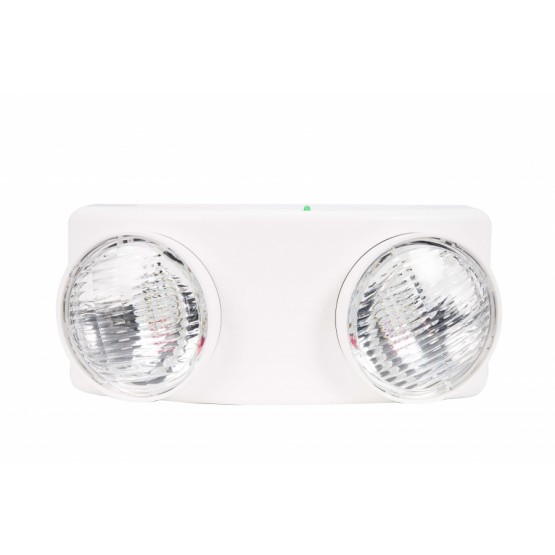

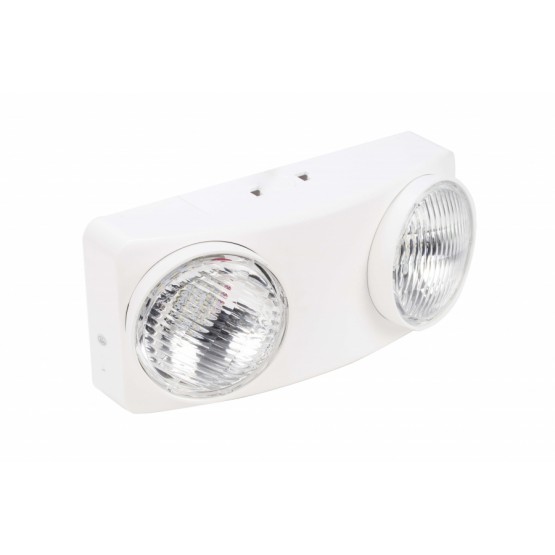

ETL 201P-LED

High-performance, self-contained emergency LED luminaire featuring a proprietary Hybrid IC control system and a high-efficiency current feed push-pull sine wave inverter. Designed to maximize battery utilization while providing bright, uniform illumination, it features a compact and lightweight housing. The thumb-press quick-lock fastening system ensures drastically reduced installation and maintenance time, making it an ideal safety solution for factories, offices, schools, and commercial buildings.

DOWNLOAD PDF

$55.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

Lamp Used

2 x SMT NICHIA White LED

Rated Period

> 2 hrs, 3 hrs ± or others

Mode

Non-Maintained

Operation Temperature

ta 40 °C

Power Consumption

< 1.4W

Charge Monitor

Super bright green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

88 lm

Electromagnetic Field

8.7m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit

Construction

Mounted Fire Retardant ABS housing 20mm Ø K/O hole. Fire retardant ABS lamp head

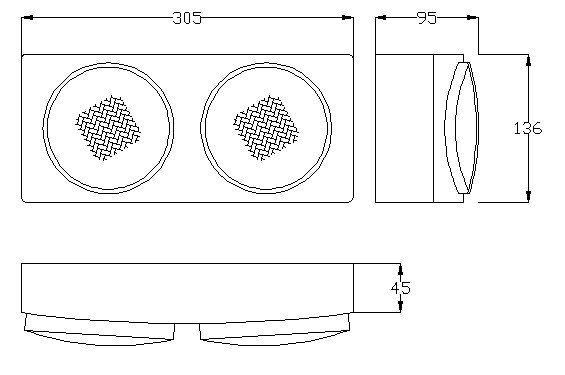

Dimension

305mm(L) x 95mm(W) x 136mm(H)

Weight

1.9kg (Net) / 2.0kg (Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 315mm(L) x 100mm(W) x 145mm(H)

Compliance

SS563-1:2000, SS563-2,2010/A1-2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016

Warranty

1 Year
