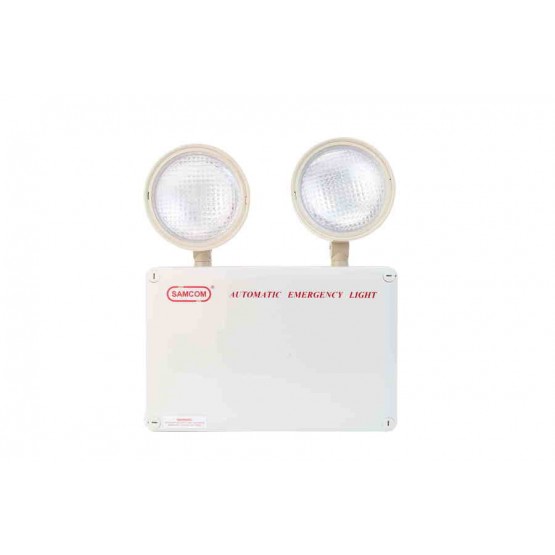

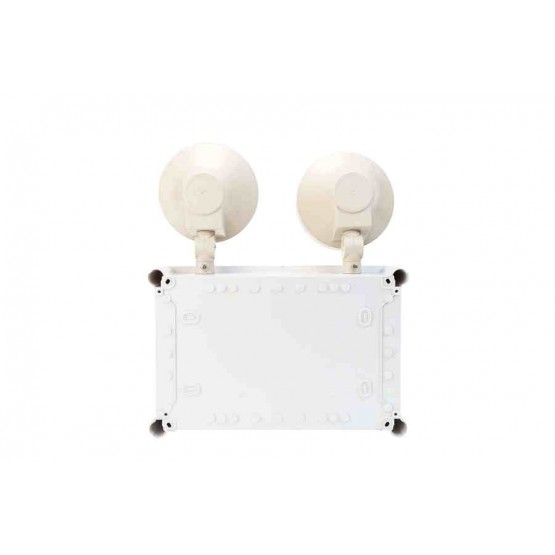

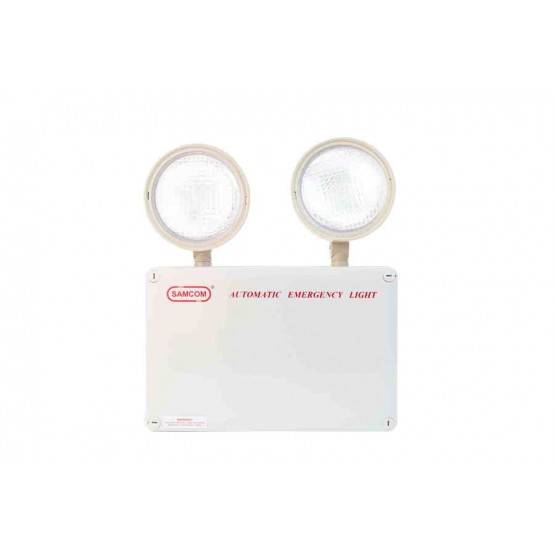

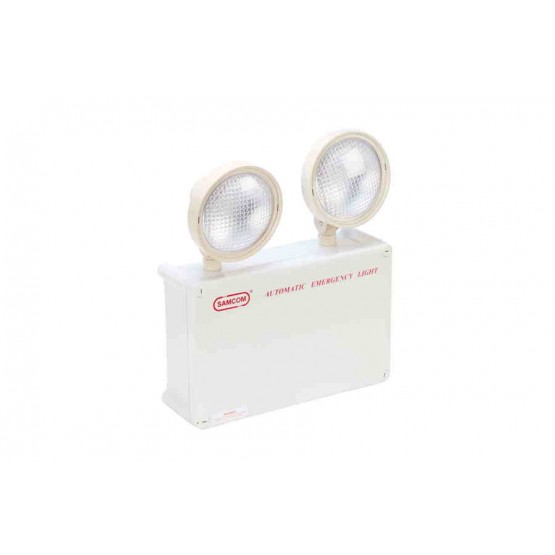

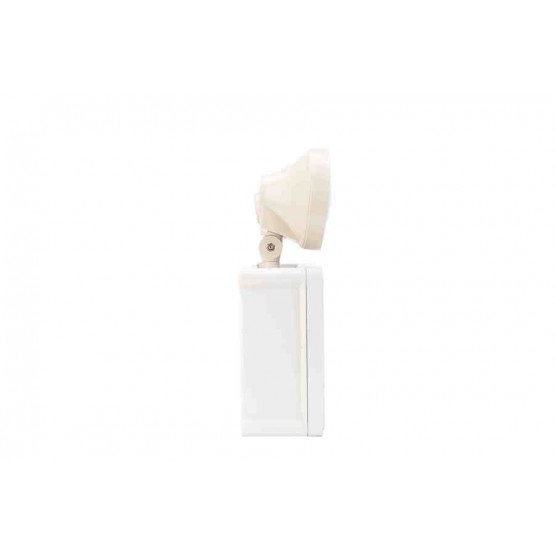

ETL 208-LED-WP

ETL-208 LED WP is a durable and energy-efficient waterproof LED light, perfect for indoor and outdoor lighting applications. Designed for reliable performance and long life, it provides bright, uniform illumination while resisting moisture and environmental exposure

DOWNLOAD PDF

$105.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

Lamp Used

2 x SMT NICHIA White LED (T=3W)

Rated Period

> 3 hrs, 4 hrs ± 10% or others

Mode

Non-Maintained

Operation Temperature

ta 40 °C

Power Consumption

< 1.4W

Charge Monitor

Super bright green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

86 lm

Electromagnetic Field

8.7m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit

Construction

Moulded fire retardant ABS housing, Cast aluminium lamp head 20mm Ø K/O hole. Fire retardant ABS lamp head

Dimension

290mm(L) x 90mm(W) x 340mm(H)

Weight

1.9kg (Net) / 2.0kg (Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 310mm(L) x 100mm(W) x 350mm(H)

Compliance

SS563-1:2000, SS563-2,2010/A1-2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016

Warranty

1 Year
