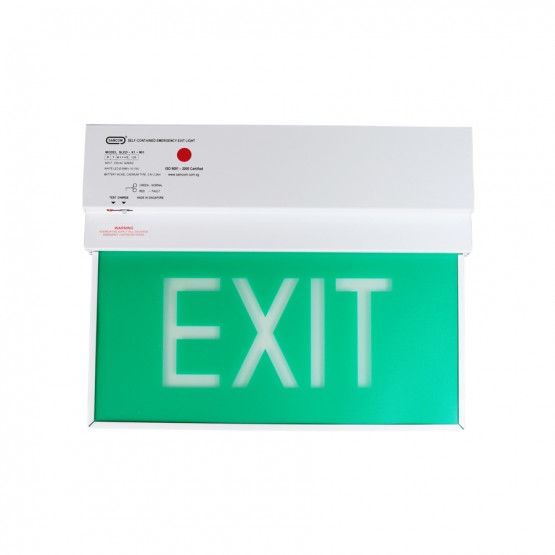

SLED-X1-WHT

Category: Emergency Luminaire with Exit Sign

Hybrid IC Controlled Self-Contained Emergency Lighting
LED Luminaire (Recess Mounting)

… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/ maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..

$50.00

Input Voltage

230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77

Battery

2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others

Lamp Used

1.5W SMT NICHIA White LED

Rated Period

> 2 hrs, 3 hrs or others

Mode

Maintained

Operation Temperature

ta 40 °C

Power Consumption

4.6W

Charge Monitor

Super bright Green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

> 8 cd/m2

Electromagnetic Field

17m gause @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

Construction

Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser

Dimension

358mm(L) x 60mm(W) x 278mm(H)

Weight

2.80kg(Net) / 3.00kg(Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 415mm(L) x 70mm(W) x 295mm(H)

Compliance

SS563-1:2010, SS563-2:2010/A1:2013 SSIEC 60598:PART 1: 2016

Warranty

1 Year

SLED-X1-WHT
