SLED-X2

Category: Emergency Luminaire with Exit Sign

Hybrid IC Controlled Self-Contained Emergency Lighting
LED Luminaire

… The designed is thin and lightwight, lowest power consumption, minimize EMI and specially equipped with a customised proprietary Hybrid IC, super-bright white LED and longer life-span. Easy and fast installation.
Enviroment for Factories, Schools, Sports Stadiums, Banks, Clubs, Hotels, Computer Rooms, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..

DOWNLOAD PDF

$50.00

Input Voltage

230Vac 50/60Hz ± 10% A: 0.34 PF: 0.77

Battery

3.6V 0.9Ah High temp rated Nickel Cadmium cells or others

Lamp Used

SMT White LED strip > 30,000 hrs

Rated Period

> 2 hrs, 3 hrs or others

Mode

Maintained

Operation Temperature

ta 40 °C

Power Consumption

< 2W

Change Monitor

Super bright Green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

> 8 cd/m2

Electromagnetic Field

17m gause @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit

Construction

Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser

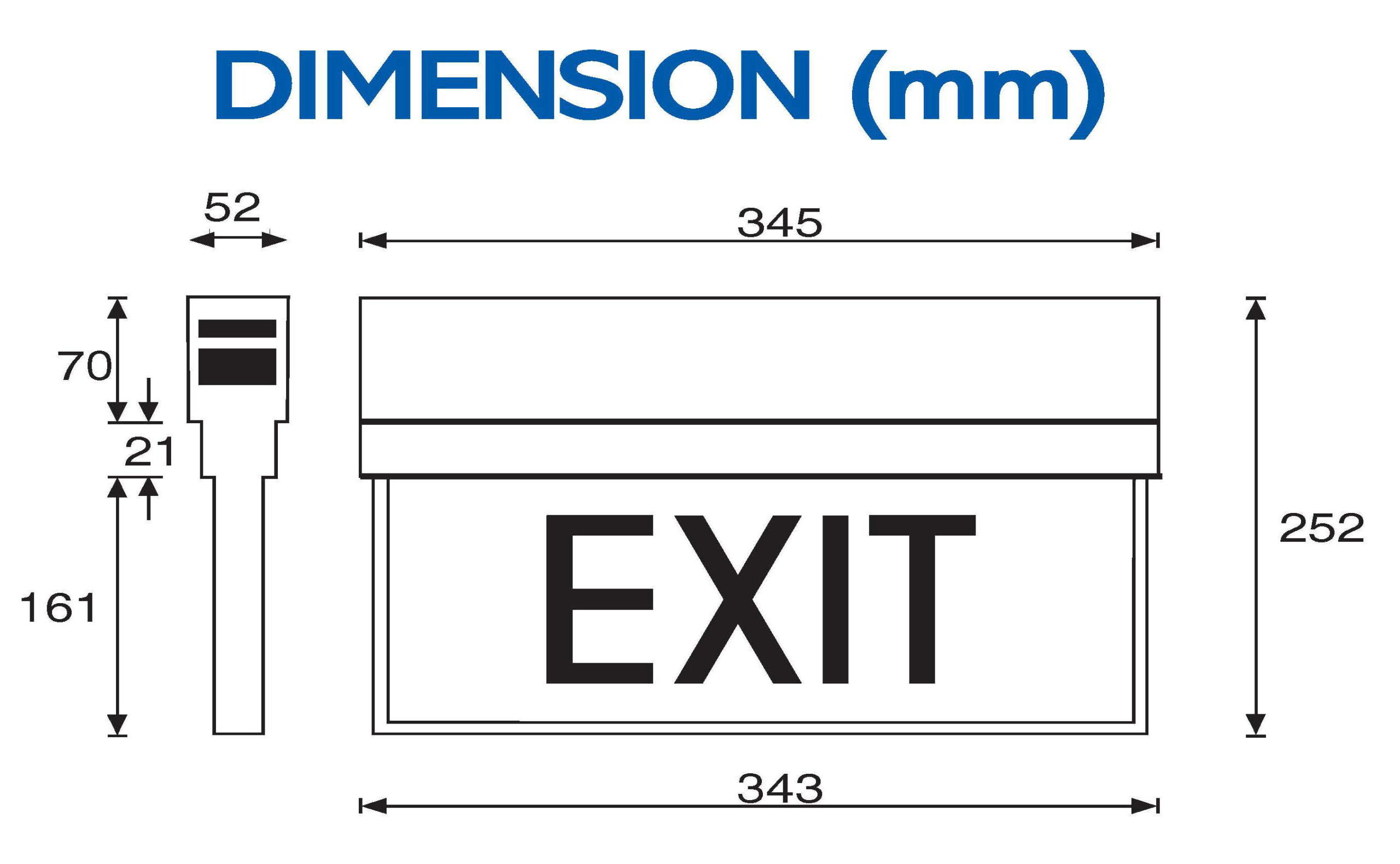

Dimension

345mm(L) x 52mm(W) x 252mm(H)

Weight

1.30kg(Net) / 1.47kg(Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 370mm(L) x 60mm(W) x 265mm(H)

Compliance

CP19: 20000, SS263, PART 2: IEC 598-2-22, S364

Warranty

1 Year
