Hybrid IC Controlled Self-Contained Emergency Exit Light
LED Luminaire (Recess Mounting)
… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/ maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
$60.00
230Vac 50/60Hz ± 10%
A: 0.34 PF: 0.77
2.4V 2.5Ah / 4.5Ah High temp rated Nickel Cadmium cells or others
1.8W SMT NICHIA White LED or T5 White LED Tube (> 50,000 hrs)
> 2 hrs, 3 hrs or others
Maintained
ta 40 °C
4.6W
Super bright Green LED 5mm Ø
16 ~ 24 hrs
> 8 cd/m²
17m gauss @ 0.1m
Hybrid controlled charger
Low volt cut-off to prevent battery over discharge.
Incoming AC fuse and Battery DC fuse.
Tropical climate protection coating on hybrid control circuit
Electrode galvanised sheet steel with epoxy powder coating.
20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser

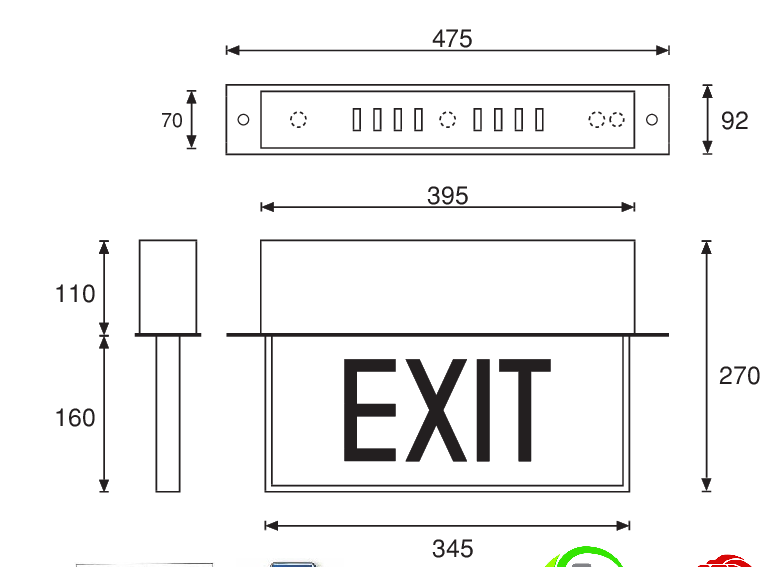

475mm (L) × 92mm (W) × 270mm (H)
2.70kg (Net) / 2.80kg (Gross)
One unit per carton
Double wall corrugated / 495mm (L) × 105mm (W) × 310mm (H)
SS563-1:2010, SS563-2:2010/A1:2013,
SSIEC 60598: PART 1:2016
1 Year
